Spring Driven Cable Reel for Crane

loading

Share to:
sharethis sharing button

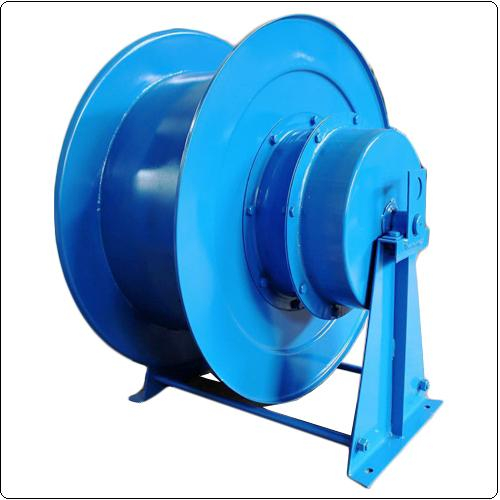

Spring Driven Cable Reel for Crane
Quantity:
  • jt

  • Ebon

  • 84314990

  • 50A

  • as demand

  • crane parts

  • as demand

  • 4

Description
omh

Cable reel is for large-scale mobile devices to provide power supply, control power supply or control signal cable winding device. It is widely used in portal crane, container crane, loader, tower cranes and other similar conditions of heavy machinery and equipment.
Cable reel is designed for coiling or releasing the large specification and long distance power supply, which can be in synchronous operation with the mobile electrical apparatus to coil or release the cables. It is divided into 3 types torque motor driven type and three phase asynchronous motor driven type. There are so many motor-driven reel models available which can coil or release the power supply cables under 500V and high voltage cables for 6kv and 10kv.

Working Conditions

The sea level is lower than 2000 meters.
Working ambient: -+45 C -20 C
The working place is allowed in the rain, splashing water and non-corrosive gas and dust.

Features:

The installation space is small, the maintenance is convenient, the use is reliable and the cost is low.
Using spiral springs as power without electric energy consumption to keep reliable in operation
Using collector slip spring carbon brush bracket to transfer the electric energy steadily and continuously
Equipped with reversible unit to avoid the reel counter-- rotating to break the springs
Power supply easily, safety and reliability in operation.

Sketch:

    1

Technical Data:
Series Size A B C D1 D2 d E F W Weight(kg)
10m series 1 250 300 300 360 500 14 460 600 300 73
2 495 650 320 78
15m,20m series 1 300 360 400 500 700 15 440 600 250 95
2 490 650 300 100
3 560 720 250 115
4 610 770 300 120
5 720 880 300 150
25m,30m series 1 400 460 450 600 800 18 525 675 300 120
2 641 795 300 150
3 751 905 300 180
4 892 1045 300 212
5 500 580 550 800 1000 18 641 795 300 185
6 751 905 300 212
7 892 1045 300 240
8 1005 1160 300 268
