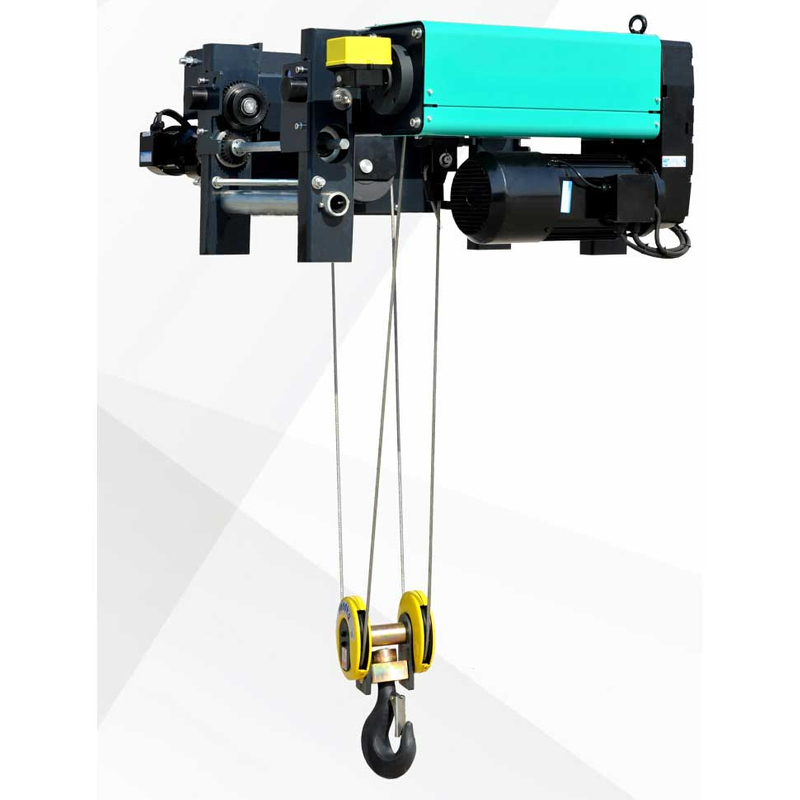

European Type Wire Rope Electric Hoist
intermediate
emergency lifting stopper
pendant or remote control
include
3-phase AC 380V 50Hz or other as required
ND Type wire rope hoist is in high configuration, which is developed with advanced design technology referring to European FEM standard.
It is with low headroom hoist trolley, which is installed on the bottom flange of the main beam. The low headroom hoist allows maximum effective use of the available lifting height.
- Working class is M4~M7
- 2-speed hoisting motors (6/1)
- 4-step hoisting limit switch with slow-down function and phase mismatch protection
- Mechanical overload protection
- Ambient temperature -10°C - +40°C
- Optimum utilization of space compact installation dimensions and optimum approach dimensions, minimum hook dimensions
- Precise and safe work Minimum lateral hook movements and low load swing thanks to smooth load movement with frequency inverters.
1- Lifting Mechanism
- FEM Standard Low Headroom Hoist
- Dual Lifting Speed
- Step Less traveling speed
- Hard Teeth Driving Geared Motor
- Top quality Steel Core Wire rope
- DIN high density hook
- Schneider Electrical Parts
2-Trolley
- Hard Teeth Driving Geared Motor
- Traveling speed: single or dual or step less as per requirements
3-Control
- Independent pendent control
- Wireless control as option
4-Painting
- Corrosion protection through rust removal by mechanical shot blasting SA 2.5
- First layer of coating epoxy 30 microns
- Second layer of coating epoxy 30 microns
- Third Layer of coating of polyurethane 40 microns
- Average thickness: about 100 microns
- Color: yellow or green as per requirements
5-Safe Protection
- Emergency-off switch
- Overload protect
- Earth protection
- Zero Position Protection
- Lifting travel protection
- Load display as option
Features:
- Compact structure, light weight, safe and reliable
- Top Quality
- Super performance with reliability
- High Efficiency
- Best return of the investment
- Wide used and interchangeable of components
- Overload limiter to ensure the safe operation
- Reasonable layout of control cabinet, easy to repair
- Limit switch is of high precision, allows the limiting of the hook's travelling in its highest position and its lowest position.
Test Equipment:
- Wooden box packing
| capacity | 1.6 | 2.5 | 3.2 | 6.3 | 8 | 10 | 10 | 12.5 | |||||||||||||||||
| work level | M6 | M6 | M5 | M5 | M6 | M5 | M6 | M5 | |||||||||||||||||
| lifting height (m) | 6 | 9 | 12 | 6 | 9 | 12 | 6 | 9 | 12 | 6 | 9 | 12 | 6 | 9 | 12 | 6 | 9 | 12 | 6 | 9 | 12 | 6 | 9 | 12 | |
| lifting speed (m/min) | 1.6/10 | 0.8/5.0 | 0.8/5.0 | 0.8/5.0 | 0.8/5.0 | 0.8/5.0 | 0.66/4.0 | 4/1 | |||||||||||||||||
| Pulley ate | 2/1 | 2/1 | 2/1 | 4/1 | 4/1 | 4/1 | 4/1 | 4/1 | |||||||||||||||||
| travelling speed (m/min) | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 | |||||||||||||||||
| main girder width b(mm) | 200~300 | 200~350 | 250~350 | 300~450 | 300~450 | 300~450 | 300~450 | 300~500 | |||||||||||||||||
| lifting side width hi (mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 490 | 490 | 490 | 550 | 550 | 550 | 550 | 550 | 550 | 560 | 560 | 560 | 560 | 560 | 560 | |
| travelling side width K2(mm) | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 540 | 540 | 540 | 540 | 540 | 540 | 550 | 550 | 550 | 550 | 550 | 550 | |
| hoist width l(mm) | 930 | 1100 | 1270 | 1180 | 1400 | 1620 | 1180 | 1400 | 1620 | 1170 | 1400 | 1630 | 1120 | 1290 | 1460 | 1120 | 1290 | 1460 | 1140 | 1320 | 1500 | 1140 | 1320 | 1500 | |
| hook height limit h(mm) | 400 | 400 | 400 | 430 | 430 | 430 | 450 | 450 | 450 | 500 | 500 | 500 | 650 | 650 | 650 | 650 | 650 | 650 | 700 | 700 | 700 | 700 | 700 | 700 | |
| max. wheel pressure (kN) | 6.1 | 6.2 | 6.3 | 9.1 | 9.2 | 9.3 | 11.5 | 11.6 | 11.7 | 22 | 22.1 | 22.2 | 28 | 28.1 | 28.2 | 34.7 | 34.8 | 34.9 | 34.7 | 34.8 | 34.9 | 43.3 | 43.4 | 43.5 | |
| weight(kg) | 300 | 335 | 370 | 315 | 350 | 385 | 335 | 370 | 405 | 400 | 450 | 500 | 580 | 610 | 640 | 580 | 610 | 640 | 650 | 690 | 730 | 660 | 700 | 740 | |
ND Type wire rope hoist is in high configuration, which is developed with advanced design technology referring to European FEM standard.
It is with low headroom hoist trolley, which is installed on the bottom flange of the main beam. The low headroom hoist allows maximum effective use of the available lifting height.
- Working class is M4~M7
- 2-speed hoisting motors (6/1)
- 4-step hoisting limit switch with slow-down function and phase mismatch protection
- Mechanical overload protection
- Ambient temperature -10°C - +40°C
- Optimum utilization of space compact installation dimensions and optimum approach dimensions, minimum hook dimensions
- Precise and safe work Minimum lateral hook movements and low load swing thanks to smooth load movement with frequency inverters.
1- Lifting Mechanism
- FEM Standard Low Headroom Hoist
- Dual Lifting Speed
- Step Less traveling speed
- Hard Teeth Driving Geared Motor
- Top quality Steel Core Wire rope
- DIN high density hook
- Schneider Electrical Parts
2-Trolley
- Hard Teeth Driving Geared Motor
- Traveling speed: single or dual or step less as per requirements
3-Control
- Independent pendent control
- Wireless control as option
4-Painting
- Corrosion protection through rust removal by mechanical shot blasting SA 2.5
- First layer of coating epoxy 30 microns
- Second layer of coating epoxy 30 microns
- Third Layer of coating of polyurethane 40 microns
- Average thickness: about 100 microns
- Color: yellow or green as per requirements
5-Safe Protection
- Emergency-off switch
- Overload protect
- Earth protection
- Zero Position Protection
- Lifting travel protection
- Load display as option
Features:
- Compact structure, light weight, safe and reliable
- Top Quality
- Super performance with reliability
- High Efficiency
- Best return of the investment
- Wide used and interchangeable of components
- Overload limiter to ensure the safe operation
- Reasonable layout of control cabinet, easy to repair
- Limit switch is of high precision, allows the limiting of the hook's travelling in its highest position and its lowest position.
Test Equipment:
- Wooden box packing
| capacity | 1.6 | 2.5 | 3.2 | 6.3 | 8 | 10 | 10 | 12.5 | |||||||||||||||||
| work level | M6 | M6 | M5 | M5 | M6 | M5 | M6 | M5 | |||||||||||||||||
| lifting height (m) | 6 | 9 | 12 | 6 | 9 | 12 | 6 | 9 | 12 | 6 | 9 | 12 | 6 | 9 | 12 | 6 | 9 | 12 | 6 | 9 | 12 | 6 | 9 | 12 | |
| lifting speed (m/min) | 1.6/10 | 0.8/5.0 | 0.8/5.0 | 0.8/5.0 | 0.8/5.0 | 0.8/5.0 | 0.66/4.0 | 4/1 | |||||||||||||||||
| Pulley ate | 2/1 | 2/1 | 2/1 | 4/1 | 4/1 | 4/1 | 4/1 | 4/1 | |||||||||||||||||
| travelling speed (m/min) | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 | 2~20 | |||||||||||||||||
| main girder width b(mm) | 200~300 | 200~350 | 250~350 | 300~450 | 300~450 | 300~450 | 300~450 | 300~500 | |||||||||||||||||
| lifting side width hi (mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 490 | 490 | 490 | 550 | 550 | 550 | 550 | 550 | 550 | 560 | 560 | 560 | 560 | 560 | 560 | |
| travelling side width K2(mm) | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 540 | 540 | 540 | 540 | 540 | 540 | 550 | 550 | 550 | 550 | 550 | 550 | |
| hoist width l(mm) | 930 | 1100 | 1270 | 1180 | 1400 | 1620 | 1180 | 1400 | 1620 | 1170 | 1400 | 1630 | 1120 | 1290 | 1460 | 1120 | 1290 | 1460 | 1140 | 1320 | 1500 | 1140 | 1320 | 1500 | |
| hook height limit h(mm) | 400 | 400 | 400 | 430 | 430 | 430 | 450 | 450 | 450 | 500 | 500 | 500 | 650 | 650 | 650 | 650 | 650 | 650 | 700 | 700 | 700 | 700 | 700 | 700 | |
| max. wheel pressure (kN) | 6.1 | 6.2 | 6.3 | 9.1 | 9.2 | 9.3 | 11.5 | 11.6 | 11.7 | 22 | 22.1 | 22.2 | 28 | 28.1 | 28.2 | 34.7 | 34.8 | 34.9 | 34.7 | 34.8 | 34.9 | 43.3 | 43.4 | 43.5 | |
| weight(kg) | 300 | 335 | 370 | 315 | 350 | 385 | 335 | 370 | 405 | 400 | 450 | 500 | 580 | 610 | 640 | 580 | 610 | 640 | 650 | 690 | 730 | 660 | 700 | 740 | |
