KBK Type Crane

Share to:

KBK Type Crane

  • KBK
  • Ebon
  • 84261929
  • 2000kg
  • 9m
  • 3-10m
  • A3-A4
  • as demand
  • Available
  • KBK Crane
  • Warehouse
Product Description

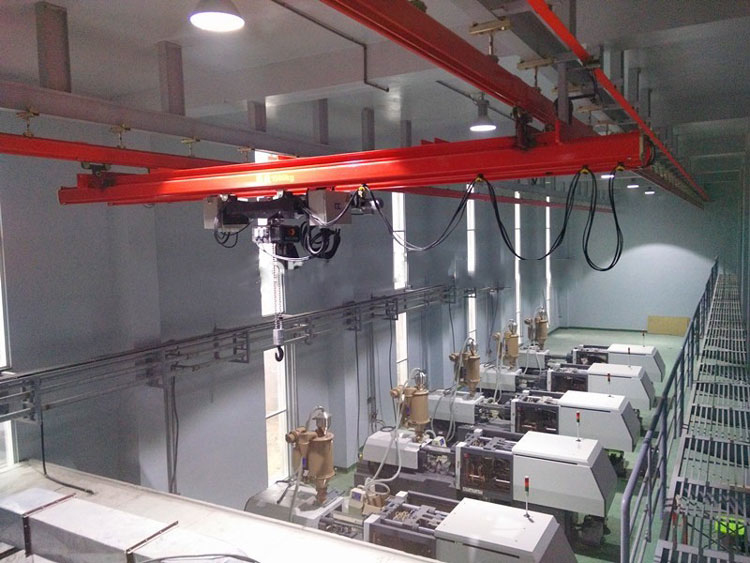

KBK crane (1)

KBK lifting craneis composed of the suspension device, rail, turnout, walking trolley, electric hoist, mobile power supply device and control
device etc. Because this product could simply hang in the workshop roof or beam frame. It can realize the material directly transportation in
the air, therefore, it is widely used in all walks of life conveying link or system.

Product Features

1.good reliability, high stability KBK light crane components of the system are all standard modules, you can ensurehigh-volume, high-quality production,

2.which system is very reliable; system module is the mainstay of three sizes of rolled profiles, intensity good rigidity,light weight, to ensure stability of the system.

3. KBK system adaptable plant each station according to the needs, flexible design and installation of the crane system,from sentinel transported to a high accuracy multi-point,

4.multi-beat automated conveyor line, can be arbitrary combination. The plant can be used for new designs can also beused to modify or extend the old system.

5.It is easy to install, cost-effective KBK system installation is very convenient, and the standard profiles bolted between the modules can only be used to save the factory space and area,

6.greatly reducing the human resources, improve production efficiency, thereby reduce energy consumption, improveenterprise efficiency.

7.System can be operated manually or can achieve automatic and semi-automatic operation, efficient operation.

Sketch and Technical data


KBK crane (1)
Lifting capacity(t) 0.5 1 2 3
Span(m) 3-5 5.5-8 9-10 11-12 3-5 5.5-8 9-10 11-12 3-5 6-8 9-10 11-12 3-5 6-8 9-10 11-12
Lifting height(m) 2.5-12 2.5-12 3-12 3-12
Type of track 120a-130c 120a-130c 124a-136c 124a-136c
Type of natched crab SDX-3.WA1/2 SDX -3.WA1 SDX  -3.WA1 SDX  -3.WA1 has1
Type of material hoist HS1/2 HS 1 HS2 HS3


Application View
1449721553692240
1449721553285246
1449721553139623
